Enhance your expression knowledge with a close look at the Javascript Math, Random Numbers, and Path Properties Expression Language menus.

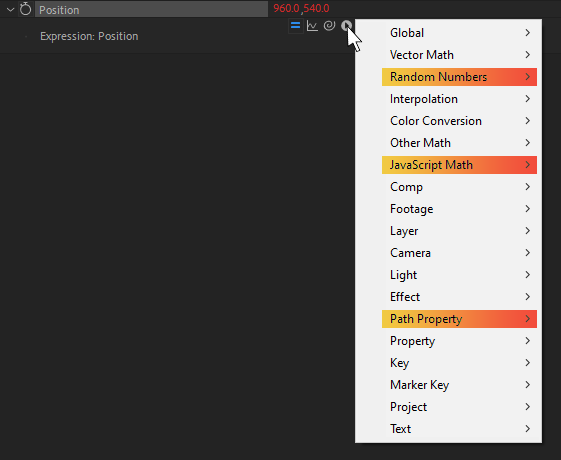

The Expression Language Menu holds a lot of little pieces for you to assemble. Where do you even start?! This series will walk you through each category and highlight a few unexpected items in each, leaving you better equipped to start expressing yourself via expressions.

These menus are all about working with numbers and properties. Unsurprising, maybe, as it's in the name. With these expressions you can exert some serious control of your animations without the need for tedious looping. We're going to cover:

• Javascript Math
• Random Numbers
• Path Property

Check Out the Full Series!

Can't express yourself enough? Check out the rest of the series:

Part 1 - Property and Effects, Layer, Key, Marker Key

‍Part 2 - Light, Camera, Text

‍Part 4 - Global, Comp, Footage, Project

‍Part 5 - Interpolation, Vector Math, Color Conversion, Other Math

Javascript Math

This whole section is directly from Javascript, with nothing specific to AE added in. As such, there are a million resources for it online!

With that said, we're going to cover working with it specifically for AE, focusing on:

• Snapping numbers to the nearest whole digit
• Getting the minimum or maximum value in a set
• Mathemagically animating something in a perfect wave
• For more information, see the MDN Javascript Math reference

I can already tell that you + this section will = a good, informative time, so let's explore Javascript Math.

ROUNDING NUMBERS

When we say 'rounding', we mean snapping a number with decimal places to the nearest whole number— 1.234 will round down to 1, 2.5 will round up to 3, 133.7 will round up to 134, etc.

Most of the time you'll want to use this when displaying text on screen without having a bajillion trailing digits, but one cooler use is to pair it with Time to have a number snap every second.

In this example, we'll apply time to the second hand of a stopwatch. First, we'll show this without the rounding:

const multiplier = 5;
time * multiplier;

You can see that the hand is smoothly moving in a circle. This is what we'd expect! Time moves smoothly, so the clock hand moves smoothly too.

But if we round this value, the clock hand will only snap every second, as opposed to evenly moving:

const multiplier = 5;
Math.round(time) * multiplier;

Now it's worth pointing out that this will snap at the midway mark between seconds, as opposed to the start; for more accuracy, use Math.floor() in place of Math.round() if you decide that really matters.

FINDING HIGHEST AND LOWEST VALUES

Let's say you've got a bunch of different numbers, and want to find the largest one of the group...or the smallest!

There are a few clever (and a lot of not-so-clever) ways to accomplish this, but the built-in Math.min() and Math.max() functions are by far the simplest.

In this case, we've got a few cars on a racetrack, and we'd like to indicate which car is currently winning without needing to do any sort of manual keyframing work on our label.

We can accomplish this by first getting all of the X positions of each car, feeding those into Math.max(), and using that value to drive the position of our label.

const car1X = thisComp.layer("Car 1").position[0];
const car2X = thisComp.layer("Car 2").position[0];
const car3X = thisComp.layer("Car 3").position[0];
const car4X = thisComp.layer("Car 4").position[0];
const car5X = thisComp.layer("Car 5").position[0];

Math.max(car1X, car2X, car3X, car4X, car5X);

If we wanted to attach our label to the losing car, we can simply swap Math.max() with Math.min() and that'd be that!

EASILY WAVING

If you're looking for some sinfully, sinuously smooth curves, you've come to the right place.

We can use the Math.sin() function to generate a sine wave from any number, which is preeeetty much just a nerdy way to smoothly sway a number from -1 to +1, forever and ever and ever.

NOW that may not sound exciting, but it is! Er, it can be!

By controlling the wave with time—which always increases—we can have it repeat forever at a consistent speed. By multiplying the result by, say, 30, we can have it go from -30 to +30, forever. By multiplying the speed higher, we can make it move faster!

All this to say: this is a function to automate extremely controllable waving animation for us with no keyframes. This metronome has no keyframes, but will tick and tock all day long:

const speed = time * 2.1;
const amount = 30;

Math.sin(speed) * amount;

No need for looping expressions, a billion keyframes, or anything of the sort.

Adding to Good Times

All of this together clearly adds up to some good times. No longer will you need to divide your focus or subtract distractions from your workday; you can practically calculate the benefits right from the get go.

From zero to AE hero, Javascript Math will keep you even. Or odd. Care for some Pi, anyone?

Random Numbers

Sometimes in AE you want to mix things up a little, create some chaos—that's where the Random Numbers category comes in!

Of course, we don't want too much chaos—that'd be reckless. Thankfully, we can use the functions in this category to control the exact limits to our randomness.

We’ll look at:

• Using seedRandom() to give us infinite variations
• Generating random -- but controllable -- numbers with random()
• Using one expression to generate a custom result on a whole lot of layers
• For more information, see the Docs for Adobe expression reference or Adobe’s Expression language reference

So with that said, let's dig into 41, 20, 110, 0.1231... sorry, got carried away. Let's dig into Random Numbers!

GENERATING NEW RANDOM NUMBERS WITH SEEDRANDOM()

Now, we all know how to get some smooth random motion-- that's wiggle()! You've seen this before so we're gonna skip over that.

Instead, I want to answer a common question that comes up:

"I like the overall feeling of the movement, but I want it... slightly different. Is this possible?"*

*okay I've never actually been asked this, BUT it's something that I've personally faced.

To solve this we'll use seedRandom(), which effectively lets us take a dice roll, and... roll it again. We're still working with a 6-sided die (that's a "d6" in geek parlance), we just want to get a different result!

Now, this is a special type of expression. You don't assign it to anything—it just sits at the top of your expression and modifies everything below...like an adjustment layer for your code, modifying anything beneath it.

To generate a brand new wiggle without needing to make new layers, we can put this expression onto position, and every time we change the number in the seedRandom() we'll get a whole new wiggle:

seedRandom(12345);
wiggle(0.5, 100);

GENERATING NEW RANDOMNESS PER LAYER

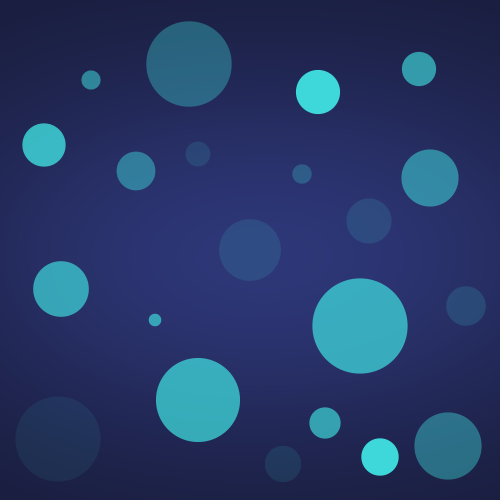

In this sample, we've got a whole bunch of layers and we want each one to have a uniquely random opacity...using ONLY ONE EXPRESSION!

To accomplish this, we'll use our friend seedRandom() from above but add in a second option, timeless, which tells AE to lock in the values it's got.

And instead of giving in a number for the first option, we'll give it index, which is the layer's # in your timeline.

We'll add this to each layer's Opacity to get this done:

seedRandom(index, true);
random(0, 100);

That's, like, totally random!

This is only a short look at what Random Numbers can do for you! There are plenty of other random functions here to take a look at, all with their own peculiarities.

Path Property

Shape layers are big these days. With the amount of 2D-centric animation flying about, a lot of emphasis gets placed on shape paths.

This section is going to look into some of the possible ways to use expressions with both shape & mask paths, unlocking some cool features that would otherwise be inaccessible or just fairly tedious to build by hand.

We'll look at:

• Getting all of the vertices of a path
• Having one shape path mirror another's
• Finding the location of a specific point on a path
• Sliding a layer along a path
• Creating custom shapes through code
• Connecting allll of the layers in our comp with a path
• For more information, see the Docs for Adobe expression reference or Adobe’s Expression language reference

Without further ado let's walk down this path and explore the Path Property submenu.

COPYING SHAPE PATHS BY EXPRESSIONS

All path properties have a special function called points(), which returns all of the positions of all of the points on a path!

With this, we can have one layer grab the points from another layer, and create a path from that.

const driverLayer = thisComp.layer("Driver");
const driverPath = driverLayer.content("Path 1").path;
const driverPoints = driverPath.points();

createPath(driverPoints);

Aaaaaaaand presto! Two paths for the price of one.

ATTACHING LAYERS TO SHAPE PATHS

One of the most common AE tasks that expressions can solve is being able to take a layer and attach it to a shape path.

Now, the built-in 'nulls follow shapes' panel can help with this, but it can be fairly clunky and bloated when you're just trying to accomplish something simple.

We can build the main part of this using pointOnPath(), a function that you give a specific % of completion along the path, and it'll return the X and Y coordinates of the corresponding point on the path at that percent.

Think of it like this—a straight line from [0, 0] to [100, 0]. 0% of the way along is [0, 0]. 50% of the way is [50, 0], and 100% is [100, 0].

That math is easy, but if we have some long windy path, we can't really compute this ourselves!

const driverLayer = thisComp.layer("Driver");
const driverPath = driverLayer.content("Path 1").path;
const progress = effect("Progress")("Slider");

const pointOnPath = driverPath.pointOnPath(progress);
driverLayer.toComp(pointOnPath);

Now we can animate a simple slider, and have our other layer follow the path all the way along it.

CONNECTING COMP LAYERS WITH SHAPE PATHS

Not only can we get path info and stick things to it, we can actually make our own brand spankin' new paths right from an expression!

Now this expression has got a lot going on, but the idea is that we can leverage a function called pointOnPath() and pass it in a list of points, and it's going to make a brand new shape path for us.

In this example, this expression on the Path property is going to connect all of the layers in our comp with a new shape, that will always be updating no matter where and how our other layers move.

const points = [];

for (let ii = index + 1; ii <= thisComp.numLayers; ii++) {
 const layer = thisComp.layer(ii);
 const layerPos = layer.position;
 const layerPosInShapeSpace = fromComp(layerPos);

 points.push(layerPosInShapeSpace);
}

createPath(points);

As we add or remove layers, the path will update live to connect ALL the dots.

WALK YOUR OWN PATH

The Path Property submenu is one of the more recent additions to AE, and this is just a small snippet at what it offers.

Now that we've seen how to clone paths, fix things to them, and make them from scratch, you'll be better aware of the possibilities when dynamic paths come up in your own projects.
