How to Use Storyboards and Moodboards to Lay the Foundation for Your Renders.
In this tutorial, we're going to explore Moodboards and Storyboards. You'll learn:
- What is the difference between a moodboard and a storyboard?
- Compositional rules for better design, such as the rule of thirds
- How to define your foreground, mid ground, and background
- How to design with contrast and leading lines
- Why you need to build in randomness
- And more
Follow Along to Learn How to Use Storyboards & Moodboards for Create Better Compositions
In addition to the video, we've created a custom PDF with these tips so you never have to search for answers. Download the free file below so you can follow along, and for your future reference.
What is the difference between a Moodboard and Storyboard?

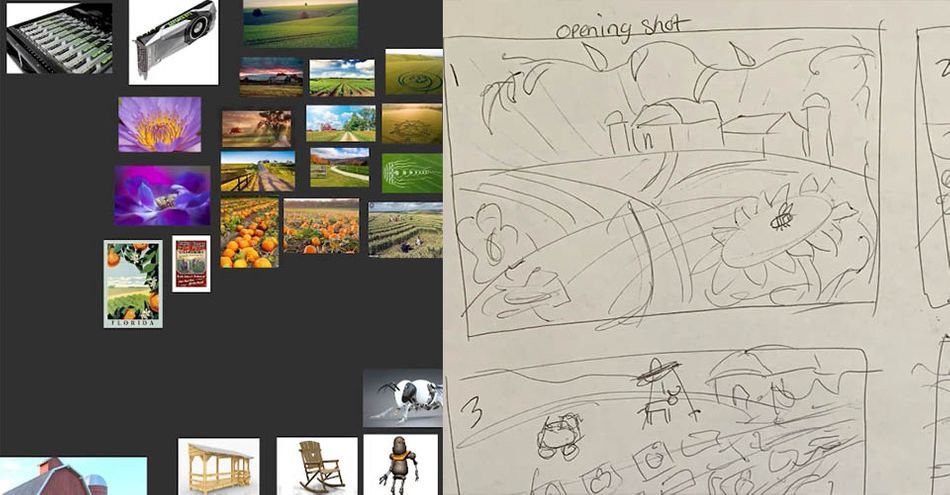

A Moodboard (or Mood Board, if you're fancy) is a collage of images, text, and samples of objects. It can use references from other artists, movies, and images from the real world to convey color, design, or emotion.
A Storyboard is a pre-visualization of a motion picture, animation, or other media represented by a series of still images.
It can really help to create storyboards and moodboards before you start your renders, which will assist you in building a solid composition and internally consistent world, rather than jumping right into 3D. I’m actually terrible at drawing so my wife tends to help me.
It’s an invaluable skill you can use to test out compositions and quickly draft ideas. I like to use the app PureRef, which is amazing and also free!
If you’re not comfortable drawing then you can also block out your composition in 3D with simple shapes.
What are the different rules for composition?

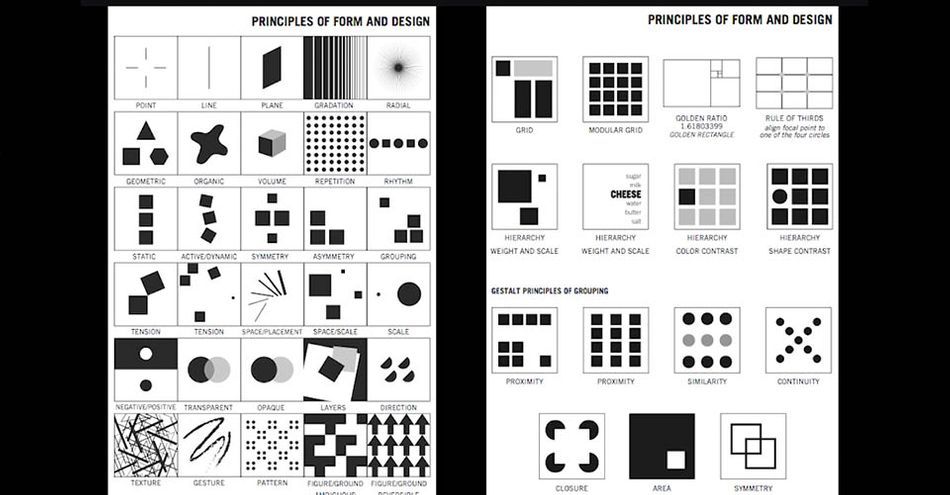

There are tons of principles that go into good design and composition, and way more than I could cover here, but let’s go over a few. These are meant to be guides, and not rules, because often the most pleasing compositions break all the rules, or use things that we’d otherwise consider ugly or mistakes to draw the eye intentionally.
The easiest compositional rule to cover is the rule of thirds, which just states that compositions become more interesting when we divide our image into a grid like this and place focal points on a third line, or the intersections of the grid, rather than the center. You can enhance the image by not putting the horizon at the center, and either placing it on the upper third and having the focus be more on what’s happening here on the ground, or the lower third and have most of the space taken by the sky.

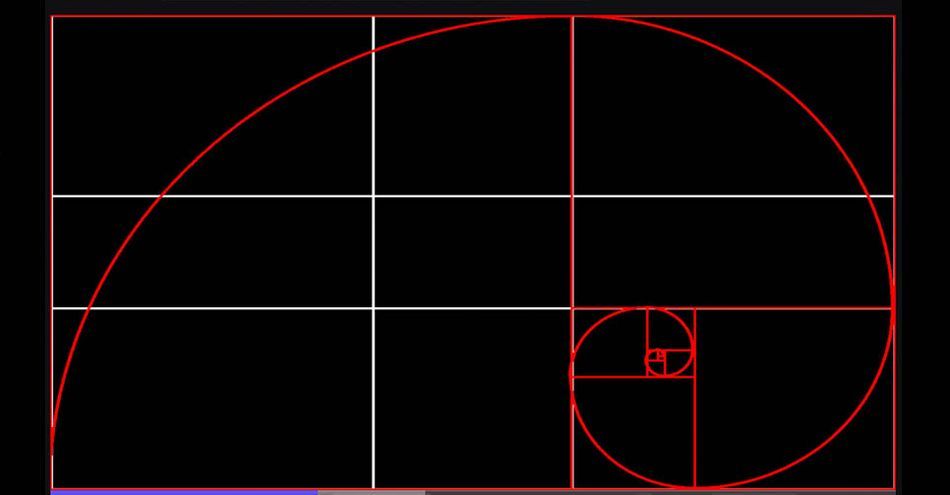

This is the Phi Grid which is based on the golden ratio spiral, another compositional tool that classical painters and artists have used for centuries to create pleasing images. Others are the golden triangles, also based on the golden ratio, and the dynamic symmetry grid, which includes baroque and sinister diagonals that can be great to align and pose characters to.
Now plenty of times it can be great to ignore the rule of thirds or Phi grids. One easy example is by center framing, which works great when you’ve got symmetrical composition.
How do you define your foreground, mid ground, and background?
Good compositions usually have a defined foreground, midground, and background, and atmospheric perspective or volumetrics can help define those depths, as can good lighting, both of which we’ll cover in future lessons.
How can you design with contrast and leading lines?
Our eye also usually goes to the brightest part of an image, as long as most of the image is dark, though if most of the image is bright our eye will immediately find the darkest part of the image. We are drawn to contrast, so use this tool to create defined silhouettes to guide the eye. So either a dark object on a bright background or a bright object on a dark background can create a strong silhouette.
Another principle is containment. For instance, if you have patches of sunlight coming through some pillars, use that to contain a darker character against the bright background.
Sometimes it can be great to have a frame within a frame, which is a form of containment, as in using some branches that are in the foreground to frame your image.
Another very helpful technique is to create leading lines and shapes that point at what we should look at. Here’s a great example from the famous photographer Ansel Adams where our eye flows down the river until it reaches the mountain as our destination.
It’s also important to experiment with a variety of aspect ratios when building your compositions. Sticking to just one aspect all the time like the instagram ratio will limit your images, and wide aspects are often associated with the most cinematic. That’s not to say that any aspect is better than any other, but playing with a variety of ratios and crops on your renders will help you improve your compositions and get out of a rut if you’re in one.
How important is randomness in composition?
Another thing to keep in mind is building in randomness and variation. As CG artists, we’re always fighting the perfection that the computer creates by default, so for example with this nature scene, if we scale the trees to random sizes and rotations, already the render is looking better, and if we add variation to the colors using Octane’s random color node, we’ll get an even more natural looking picture.
For selling scale in a render, it can also be great to include something that cues our eye to the scale. Putting in little scale dudes may be overdone, but there’s a reason for that, and that’s because it works. Other things that can help define scale are birds, or even the lighting itself, but we’ll get into that in a later example.
Failing to plan is planning to fail. That's true in basically every aspect of life, so design is no different. If you want your compositions and renders to stand out at a professional level, start with a good moodboard and a well thought out storyboard. Your final product will thank you.
This is just Part 1 of our 10-part series on Making Your Renders Better, so come back soon!
Want more guidance on how to render better?
If you're ready to step into the next level of 3D design, we've got a course that's just right for you. Introducing Lights, Camera, Render, an in-depth advanced Cinema 4D course from David Ariew.
This course will teach you all of the invaluable skills that make up the core of cinematography, helping to propel your career to the next level. You’ll not only learn how to create a high-end professional render every time by mastering cinematic concepts, but you’ll be introduced to valuable assets, tools, and best practices that are critical to creating stunning work that will wow your clients!
